search results 'HV|Power|Supply'
TM6040
- 60 W
- 125 W high‑power output
- Low stored energy
- fast rise time
- low overshoot
- Output current adjustable from 0 to maximum at 0 V output
- Output short‑circuit protection
- High power‑to‑voltage density
- Ultra‑thin form factor
- digitally controllable
- Output voltage and current readback
- Customizable per user requirements
THP2343
- Maximum output of 225kV / 12kW per single unit
- Master-slave control; supports paralleling up to 18 units
- Solid-state packaging
- Soft-switching topology with digital control
- Continuously adjustable voltage and current
- Presettable and modifiable protection thresholds
- Nanosecond-level protection response
- Full protection against overvoltage
- overcurrent
- short circuit
- arc and overtemperature
- Supports digital communication interfaces
- Customizable according to user requirements
TD2312
- Output voltage: 1 kV~100 kV
- Output power: 500 W~1 kW
- Overvoltage
- overcurrent
- short-circuit and arc protection
- Voltage and current adjustment function
- Remote voltage and current adjustment
- Digital communication (optional)
- Safety interlock function
- Supports up to 18 units in parallel
TS0718N30-60
- 8 channels integrated: Modular rack‑mount design with a unified DB15 communication interface.
- Includes filament power supply (Fila)
- arc discharge power supply (Arc)
- extraction power supply (Ext)
- and puller power supply (Puller).
- Output ripple: ultra‑low ripple at mV level.
- Long‑term stability: 0.01% per hour (after 0.5‑hour warm‑up).
- External accelerator power supply (Accel)
- suppressor power supply (Supp)
- deflection power supply (Ski)
- and other protection devices.
TS0708
- Main lens source: ~7000 V @ 2 mA
- Bipolar deflection source: ±1000 V to ±4000 V
- Retarding field source: –1500 V to 0 V
- High‑precision current source: 0–2 A / 25 V
- Ripple and noise: better than 20 ppm (0.02–50 Hz)
- Adjustment resolution: voltage step 0.01 V， current step 0.1 mA
- Stability: ppm‑level ultra‑low drift across all channels
- Standard rack‑mount form factor
TESC7080-C0021
- +24V DC input
- Bipolar output with 20 ms polarity switching
- Smooth zero - crossing
- Analog control / RS232 control / USB control /Ethernet control
- In - situ capacitance detection range: 2 pF to 30 nF
- In - situ capacitance detection rate: 10 times per second (within 1 s)

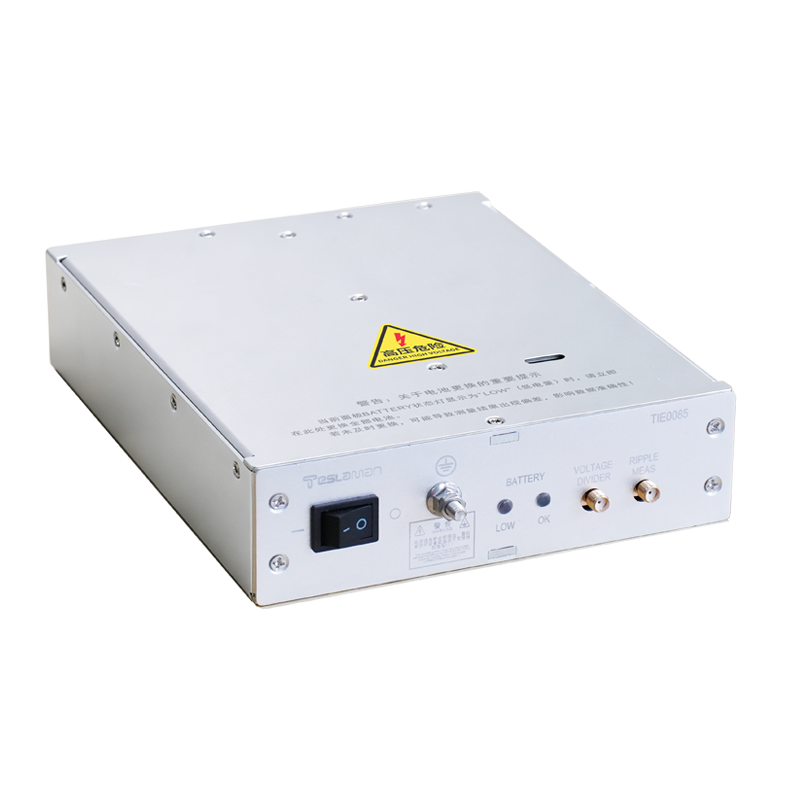

TIE0085
- AC coupling bandwidth: 1 Hz to 2 MHz
- DC input voltage: ±10 kV
- AC output voltage: ±10 V
- Measurable ripple: 5 mVp‑p minimum
- Ripple attenuation ratio: better than 0.95 @50 Hz to 2 MHz

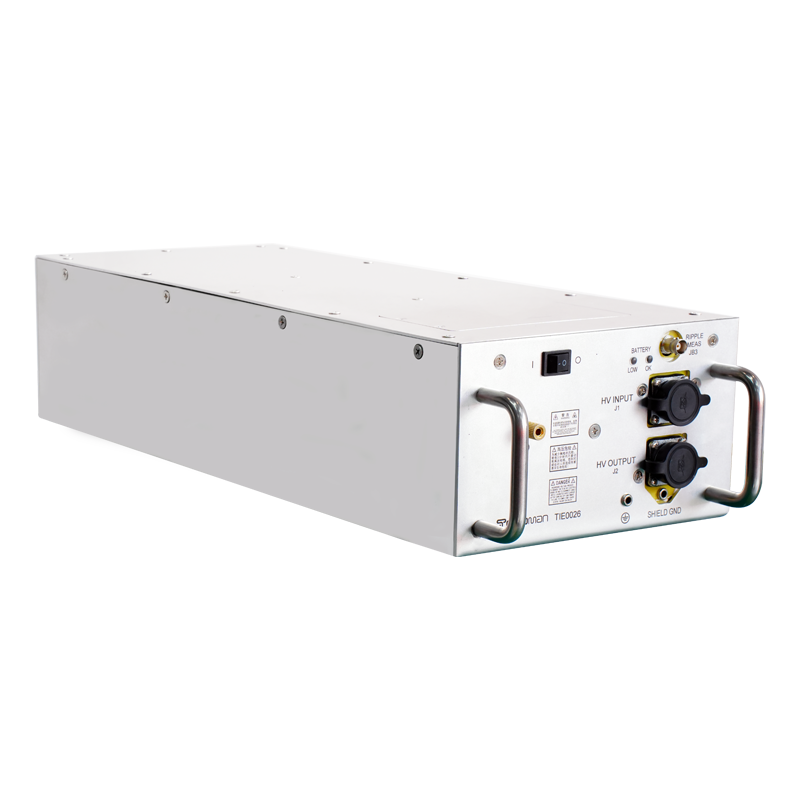

TIE0026
- AC coupling bandwidth: 1Hz-2MHz
- Input voltage DC: 0±60kV
- Output voltage AC: 0±5.5V
- Measurable ripple: > 2mV
- Attenuation ratio: 0.95@1Hz-2MHz
- Input impedance: > 1GΩ
- Output impedance: 50Ω
